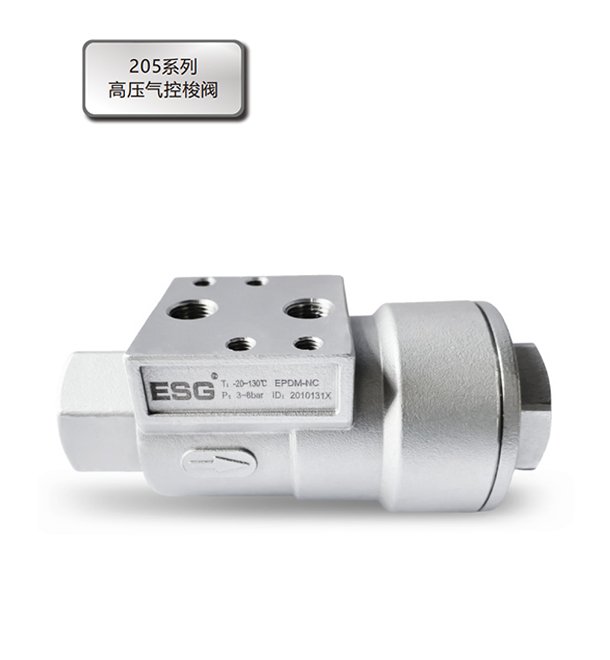

205 Series Pneumatic High-pressure Shuttle Vavle
Advantages
1. Small volume, beautiful appearance and long service life Stainless steel body, high-graded appearance and corrosion resistant. The piston and the seal are combined into one, simple and reliable, with an ultra - long service life, and can be installed in any direction.
2. High speed and low pressure loss. Better medium flow state within the body. Since the medium pressure acts on the valve seat, the piston is hardly disturbed by resistance. Therefore, the switch speed is high and the pressure loss is low.
3. High pressure resistant. Excellent sealing performance, and applicable in high-pressure
| Operating pressure | 0-100bar (0-1450psi) |
| Control pressure | 3-8bar(43.5-116psi) |
| Control medium | Filtered compressed air or neutral gas |
| Flow Kv | 5(m 3 /h) |
| Body material | CF8M/CF8 |
| Seal material | EPDM/FPM (customized) |
| Applicable medium | EPDM-Suitable for steam and hot water, |
| unsuitable for oils, greases, fuels, etc. | |
| FPM-Suitable for most fluid, except for steam. | |
| Medium temperature | -20℃—+150℃ (FPM), -20℃— +130℃ (EPDM) |
| Ambient temperature | -20℃—+80℃ |
| Control type | Single acting Normaly closed, Double acting normally closed, |
| Double acting without spring | |
| Connection type | Threaded connection (BSP、BSPT、NPT) |
| Leakage class | DIN EN 12266 Class A |
-
