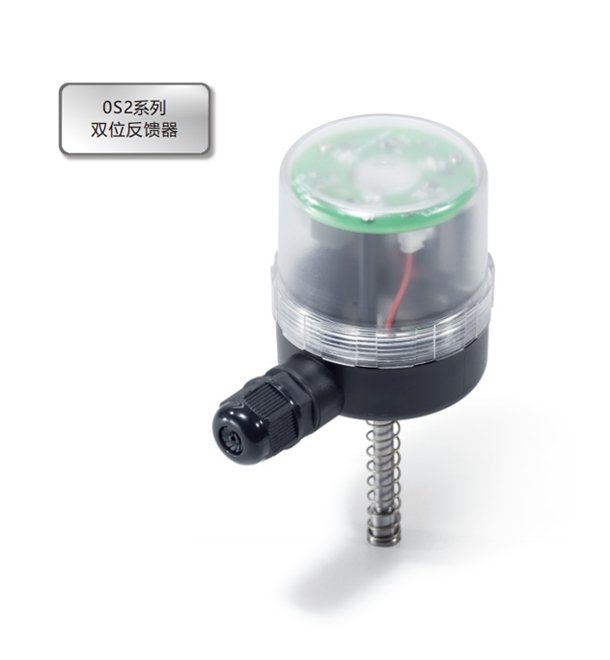

0S2/0S3 Series Two-position feedback device (mechanical type)
Advantages
1. Compact size to save space.
2. Reliable performance and sensitive reaction.
3. Spring-loaded and threaded connection are easily interchangeable.
4. Quick installation and allows 360°rotation adjustment.
5. Unique slider adjustment, convenient adjustment and preciseposition.
6. Screw-free terminal block makes wiring more convenient.
7. Waterproof cable lock ensures internal dustproof and moisture proof.
8. A variety of input/output modes canbe realized through simple adjustments.
9. Using magnetic switch to achieve contactless feedback, prolong the service life.
Function Principle
It is used to detect and feedback both open and closed states of the connected valve.
| Stroke range | 5-35mm (Mechanical type ) |
| /5-30mm (Contactless type) | |
| Voltage | 12V DC-36V DC (Mechanical type ) |
| /12V DC~30V DC (Contactless type) | |
| Current | MAX.300mA (Mechanical type ) |
| /MAX.100mA (Contactless type) | |
| Indication Light | Visually feedbacks the valve's open/close status |
| Temperature range | -20℃ — +70℃ |
| Storage temperature | -30℃ — +80℃ |
| Ambient humidity | ≤90%RH |
| Protection level | IP65 |
| Explosion-proof | II 3G Ex ec IIC T4 Gc |
| Enclosure material | PA6-GF30+PC |
| Main dimension | Φ62x70 |
| Installation interface | G1/4, M26x1.5 |
| Wiring method | Unscrew the transparent cover, thread the cable through the cable opening and connect it to the required terminal. |
