Function Principle

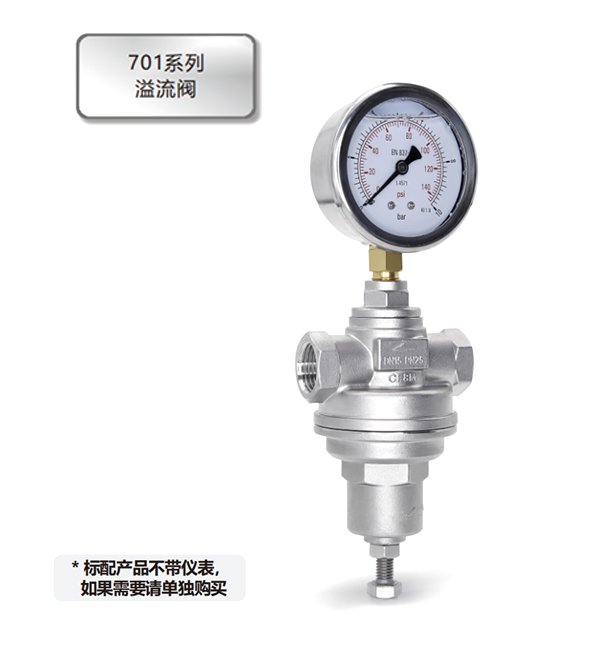

Overflow valve is a N.C valve that limits fluid pressure under a desired threshold, by adjusting the spring force and balancing it with the pressure applied by medium at the inlet. It ensures
Advantages
1. All valve parts are made of stainless steel CF8M, suitable for water, weak acid and weak base, etc.
2. The valve combines the structure design of a piston type valve and a diaphragm type valve to achieve better service life.
| Nominal Pressure | PN25 |
| Pressure Range | 1-10bar (15-145psi) |
| Medium Temperature | -15℃ — +100℃ |
| Seal Material | FPM |
| Connection type | Threaded connection (BSP、BSPT、NPT) |
| Body material | CF8M |
-
