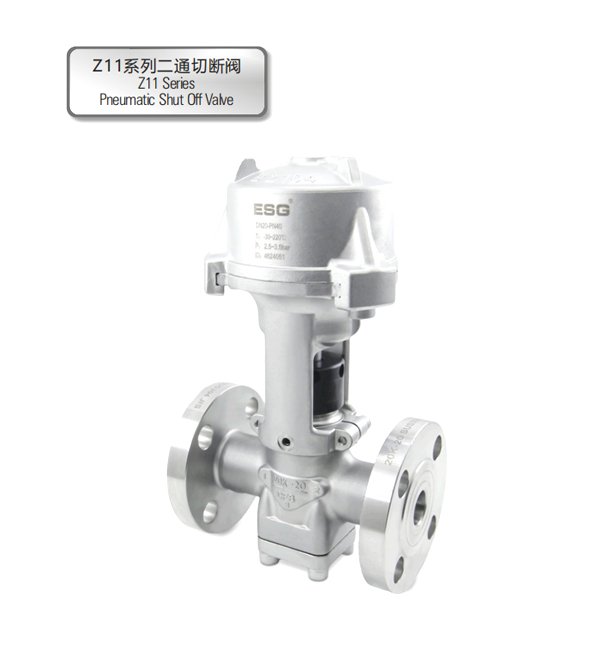

Z11 Series Pneumatic Shut Off Valve
Introduction
1. Valves are suitable for steam, compressed air, nitrogen and superhotwater as well as other medias.
2. High quality PTFE sealing material and special geometry ensurereliable sealing and smooth flow.
3. The packing uses 4 sets of V-reinforced PTFE and springs, which areresistantto wear and have automatic compensation function.4. Special stem indicating treatment ensures low friction and reliablesealing of the stem and packing.
5. Widely used in rubber, tire and other products vulcanization processofautomatic temperature control.
| Operating pressure | 0-32bar (0-464psi) |
| Fluid temperature | 0°C-+210°C |
| Controlpressure | 2.5-3.5bar(36.25-50.75psi) |
| Body material | CF8 |
| Ports | 2-way, 3-way |
| Seal material | PTFE |
| Application fluid | Steam, super hot water, nitrogen,compressed air |
| Control type | Single Acting Normally Closed,Single Acting Normally Open |
| Connection type | FlangejiS 20K(ASME CLASS 300,DIN PN40,GB PN40 customization available) |
-
