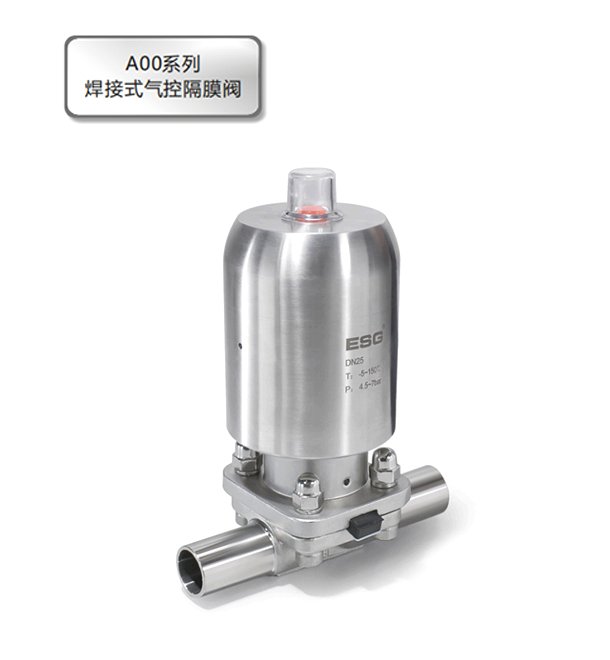

A00 Series Welded Pneumatic Diaphragm Valve
Application industry
Biopharmaceutical, food and beverage, fluid equipment, cosmetics, winemaking, light chemicals, etc.
| Material | (Body) Investment Casting CF3M, Forged F316L (Custom Special) (Pneumatic) Cylinder + Seat CF8, (Manual) Seat CF8 |
| Valve body surface | Mechanical polishing≤ Ra 0.4μm (electropolishing optional) |
| Diaphragm material | EPDM + PTFE (Double Diaphragm), EPDM (Single Diaphragm) |
| Work stress | 0-10bar (0-145psi) |
| Medium temperature | -10°C — 130°C (sterilized 150°C, 60mins) |
| Control pressure (pneumatic) | 4.5-7bar (65-102psi) |
-
