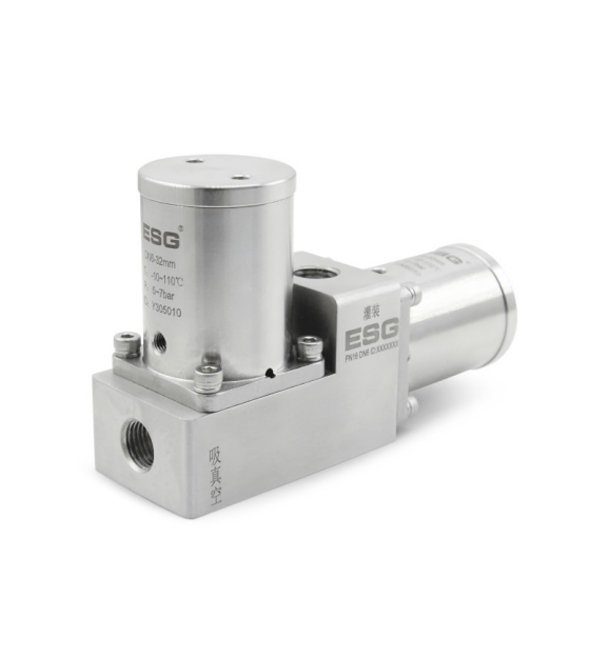

CAC series vacuum injection valve
Peculiarity
This product integrates the functions of vacuum extraction and liquid injection, and can be controlled independently and without interfering with each other.
| Valve specifications | DN6 |
| Nominal pressure | 0-10bar(0-145psi) |
| Control pressure | 5-7bar(72.5-102psi) |
| Control medium | Clean compressed air or neutral gas |
| Medium temperature | -10℃—+110℃ |
| Ambient temperature | -10℃—+60℃ |
| Air source interface | M5 (Customizable) |
| Applicable media | Electrolyte, air, pure water, etc |
| Form of connection | Threaded (RC1/4")\KF flange |
| Mounting location | Horizontal installation |
