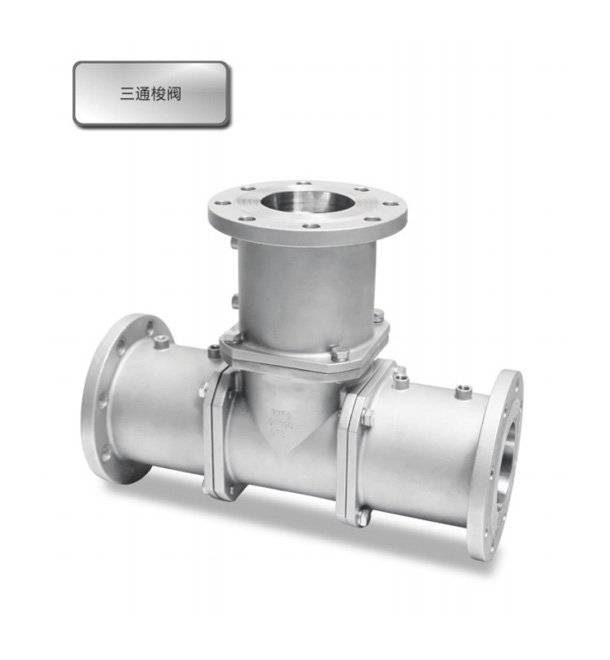

Features:
1.Compact size, elegant appearance, long lifespan
The valve body is made of stainless steel, offering a high-end appearance and corrosion resistance. The piston and seal are combined into one, making it simple and reliable with an ultra-long service life. It can be installed in any direction.
2.Fast speed, low pressure loss, low noise
The flow state of the medium inside the valve body is improved. Due to the pressure of the medium acting on the valve seat, the piston is almost unaffected by resistance, allowing for fast switching speed, low pressure loss, and low noise.
Working Principle:
Compressed air drives the piston to reciprocate, thereby opening and closing the valve. This valve has three through-holes and can achieve functions such as switching direction, diverting, or mixing. To some extent, it can replace a three-way, two-position shut-off valve.
| Work stress | 0~10bar |
| Control pressure | 3～8bar |
| Control medium | Clean compressed air or neutral gas |
| Body material | CF8 |
| Sealed material | EPDM/FPM (fluoroelastomer FPM needs to be customized) |
| Applicable media | EPDM is for hot water and steam, not for grease, fuel, etc |
| FPM is suitable for the vast majority of media, except steam. | |
| Medium temperature | -20℃~130℃ |
| Ambient temperature | 20C~80c |
| Control form | Double-acting free state |
| Form of connection | Flange JB/T82.1 |
| Leak level | DIN EN 12266 Class A |
