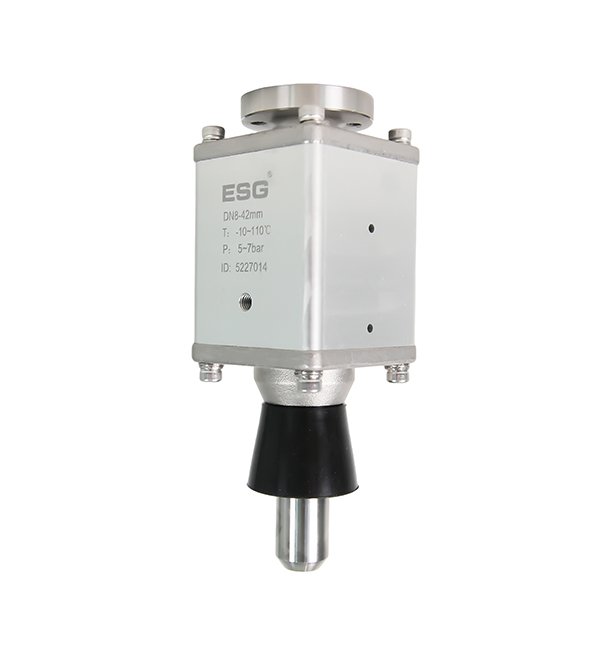

CTV axial flow injection valve
How it works:
When not in the working state, due to the action of spring force, the valve seal intercepts the medium and prevents the media from dripping. When the actuator piston is acted on by compressed gas, the valve opens and the medium flows out from the outlet end.
Peculiarity
1. Vertical pipe design, greatly saving installation space;
2. The interior is made of polymer sealing material, which has good wear resistance and strong corrosion resistance.
3. Special scraping structure, internal scraping during operation to prevent crystallization and blockage;
4. The outlet end is sealed, no dripping, and the injection accuracy is high.
| Valve specifications | DN5、DN8 |
| Nominal pressure | 0-0.6MPa |
| Control pressure | 5-7bar（72.5-102psi） |
| medium pressure | 0-0.6MPa (according to the recommended flow direction) |
| Control medium | Clean compressed air or neutral gas |
| Body material | CF8M, CF3M and other special materials |
| Sealed material | PTFE |
| Air source interface | M5 (Customizable) |
| Flange sealed | O-ring seals |
| Applicable media | Water, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvents, acid-alkali solutions, electrolytes, etc |
| Control form | Uni-acting normally closed |
| Form of connection | French style |
| Medium temperature | -10℃—+110℃ |
| Ambient temperature | -10℃—+60℃ |
