New Product Launch | ESG Dual Feedback Control Head: Solving Five Major Pain Points of Pneumatic Valves

The effectiveness of a pneumatic valve depends half on the valve body and half on the control head.

Traditional solutions: External solenoid valves have convoluted piping and slow response; microswitches wear out over time, resulting in intermittent feedback; replacing a PLC reveals a PNP/NPN mismatch, requiring reselection; valves get stuck and no one notices until the entire batch of materials is ruined.

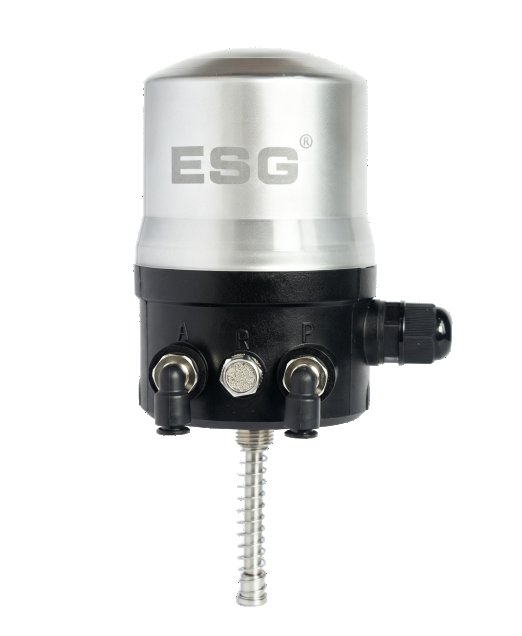

The 0C1 series dual feedback control head features an integrated design, addressing five pain points at once.

Key Parameters

Stroke Range: 5-40mm

Operating Voltage: 24V DC±10%

Power Consumption: MAX＜3W

Feedback Signal: Switch signal PNP/NPN

Housing Material: PA6+GF30

Dimensions: φ79.6x122mm

Temperature Range: -20℃~+70℃

Protection Rating: IP65

Explosion-proof Rating: Ⅱ 3G Ex ec ⅡC T6 Gc

Mounting Interface: G1/4; M26x1.5 (Customizable)

Pain Point 1: External solenoid valves have lengthy air paths, resulting in delayed operation and cumbersome maintenance.

Traditional solutions often use external or remote solenoid valves, which not only look messy and take up installation space, but also have excessively long control air lines that cause valve start-stop actions to be delayed, making it difficult to guarantee response speed. Installation, commissioning and daily operation and maintenance are also extremely cumbersome.

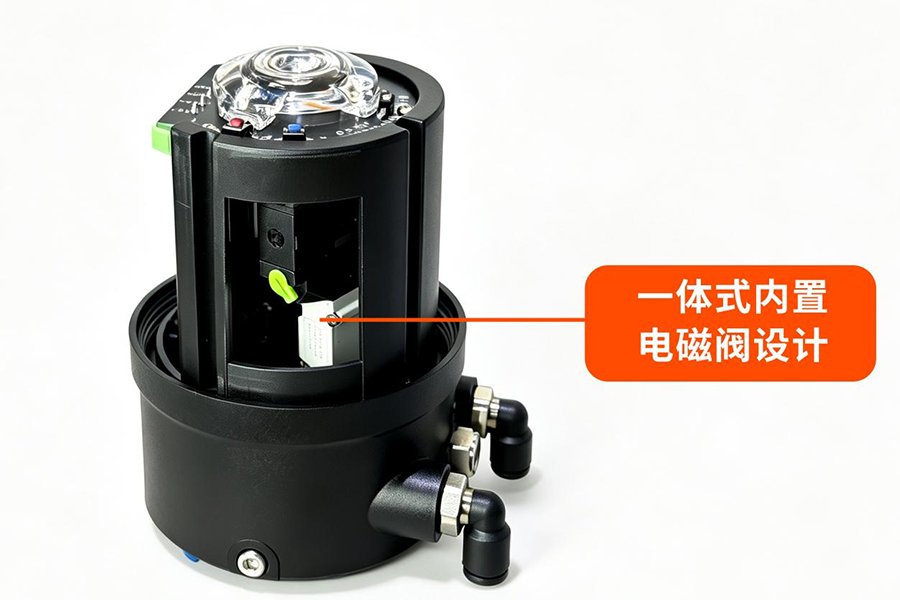

ESG Solution: Integrated built-in solenoid valve design. The solenoid valve and control head are highly integrated, with the air circuit built into the valve body, resulting in a compact structure and a clean, uncluttered appearance. It provides precise control over both open and closed valve states, featuring clear drive logic, stable and rapid response, and power consumption below 3W. The solenoid valve also includes a manual operation button, fully meeting the needs of equipment debugging, testing, and emergency operation in urgent situations.

Pain Point 2: Microswitch-type feedback is prone to wear and tear, resulting in poor reliability over long-term use.

Traditional valve position feedback relies on microswitches for mechanical triggering, which has problems such as contact wear, easy deformation and failure after long-term operation, short life and high failure rate, which is particularly prominent under high-frequency opening and closing conditions.

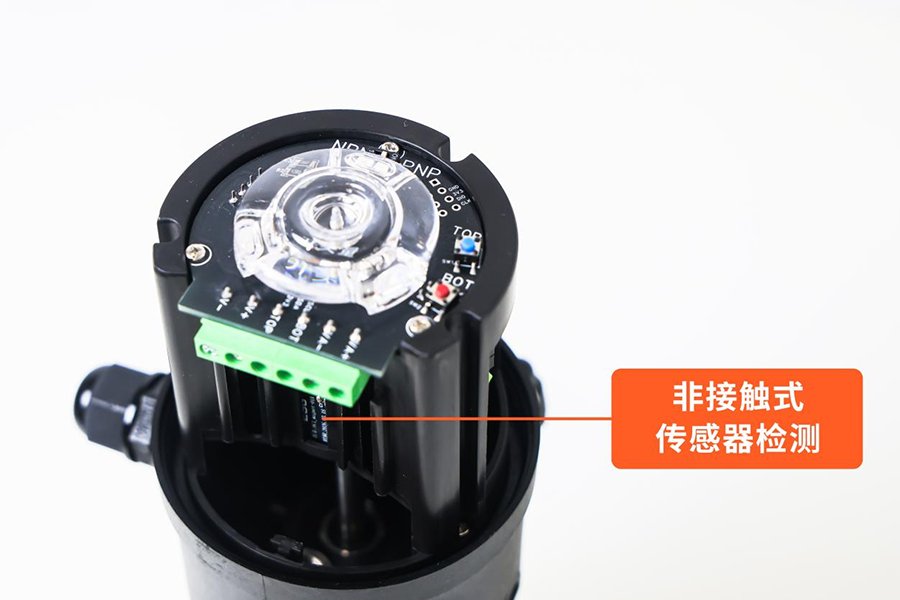

ESG Solution: Non-contact sensor detection. Internally, non-contact sensors detect valve position, eliminating mechanical wear at its source, significantly extending product lifespan, and ensuring long-term stable and reliable operation.

Pain Point 3: The slider-type feedback position adjustment is cumbersome and has a large sensing error.

When debugging traditional slider-type micro switch feedback devices, the slider position needs to be manually adjusted repeatedly, which relies on professional tools and installation experience, is time-consuming, has large sensing position errors, and has low on-site deployment efficiency.

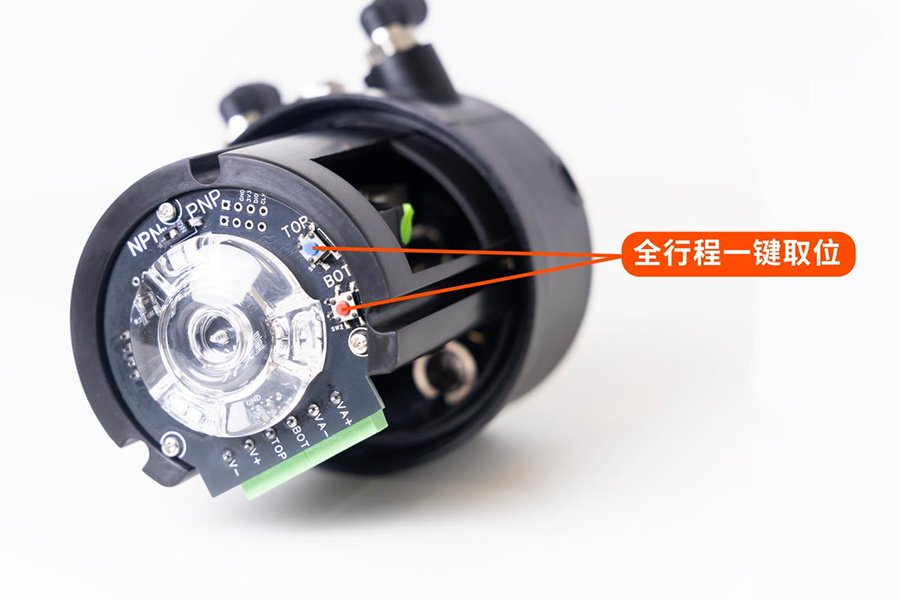

ESG Solution: One-click location retrieval throughout the entire travel range. Leveraging built-in microprocessor intelligent algorithms and a teach pendant button, the system enables extremely simple operation. Staff do not need specialized debugging tools or professional training; simply pressing the teach pendant button automatically locks the entire travel position and stores parameters, quickly calibrating the opening and closing points. This significantly reduces on-site installation and maintenance difficulty and improves equipment deployment efficiency.

Pain Point 4: Fixed feedback output type, poor compatibility, and high procurement costs.

Traditional feedback devices have a single output mode, and when adapting to different PLC host computer systems, it is often necessary to modify the hardware wiring and rewrite the program. It is difficult for a single device to cover multiple industrial control scenarios, resulting in high procurement and replacement costs for enterprises.

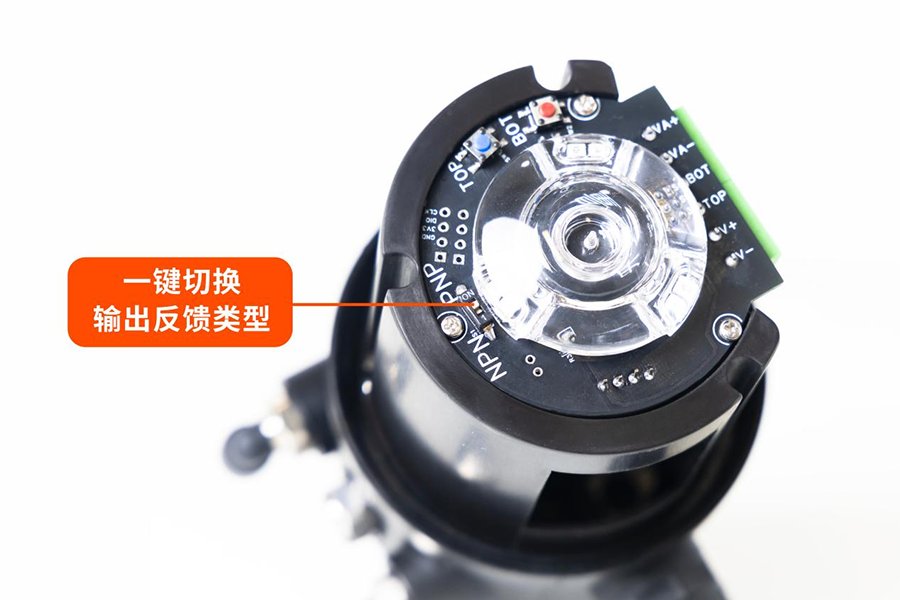

ESG Solution: One-click switching of output feedback type. With a built-in multi-mode output algorithm, it allows for easy switching between PNP/NPN digital outputs without requiring hardware wiring modifications or reprogramming, perfectly adapting to various PLC host computer systems. One device covers multiple industrial control scenarios, effectively reducing enterprise equipment procurement and inventory costs.

Pain Point 5: No warning for valve misalignment, delayed fault detection

Traditional control heads operate silently when valves are stuck, displacement is deviated, or signals are interrupted, making it difficult for on-site personnel to detect in time. This can easily lead to a chain of risks such as process interruption, material leakage, and even equipment damage.

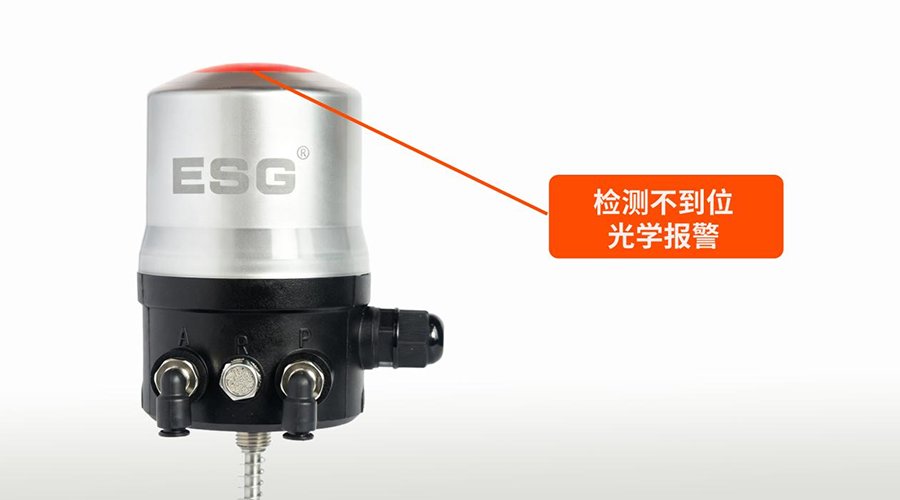

ESG Solution: In-Position Optical Alarm. This system monitors valve position in real time. When internal sensors fail to detect the preset opening point, valve jamming, displacement deviation, or signal interruption occurs, a high-frequency flashing indicator light is immediately triggered as a warning. This alarm method offers rapid response and high recognition accuracy, quickly capturing fault signals even in complex industrial environments. It helps maintenance personnel troubleshoot problems immediately, ensuring the continuity and safety of production processes.

The 0C1 is a mechanical two-position valve controller for internally displacing solenoid valves. It is highly versatile, has a customizable mounting interface, and can be used in conjunction with most valves on the market.

The valve is the actuator, and the control head is the brain. Only when the brain is reliable can the valve truly be reliable.
