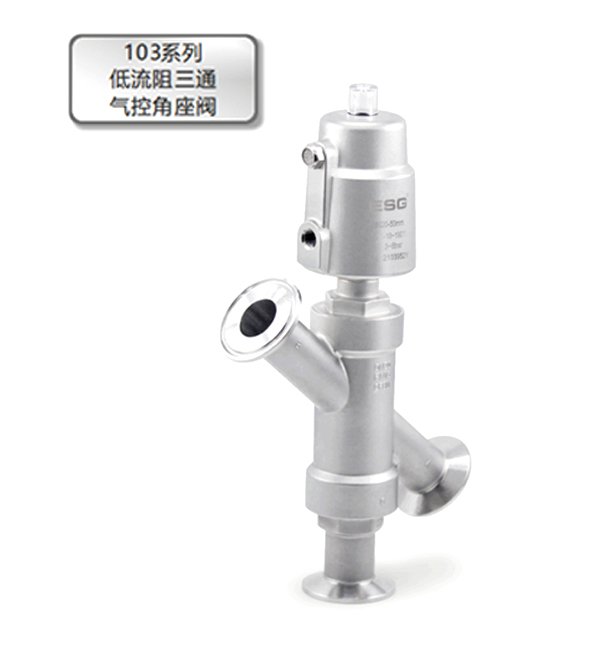

103 Series Low-Flow-Resistance 3-Way Angle Seat Valve

Function Principle

We can achieve flow reversing, diverting and mixing functions with  this valve. To a certain extent, this 3-way angle seat valve can replace two 2-way valves. At non-operating state, port C is closed, while  port A and port B are interlinked. When give control air to actuator,  port C and port A is interlinked, but channel between port A and port B is closed. If choose double acting control type, air control to open

Advantages

1.Low-residue design, easy to clean.

2. Large flux, low resistance; flow resistance can be reduced by  50%, flow rate can be increased by 40%.

3. Stainless steel actuator suitable for harsh working conditions and
