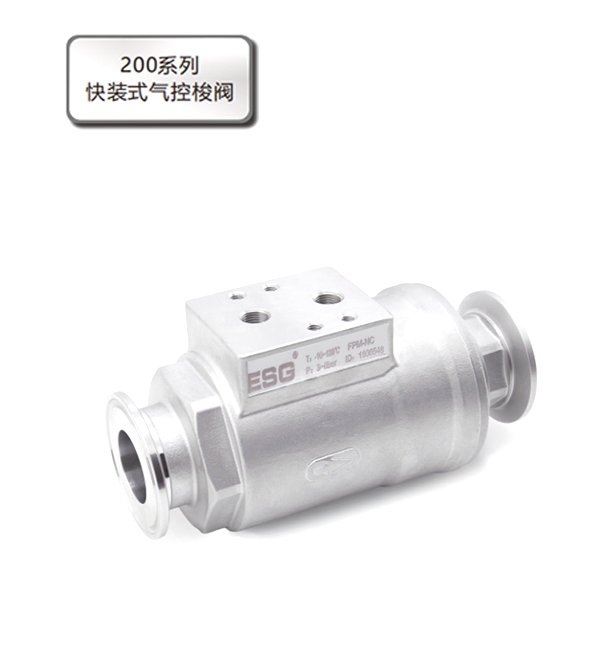

200 Series Pneumatic Shuttle Valv
Function Principle
This valve opens and closes through piston motion forced by compressed air. As fluid pressure acts onto valve seat, the piston experiences little resistance and thereby enables the valve to quickly open/close. The latest design improvement results in more effiuent
Advantages
1. Compact and aesthetic design. Stainless steel body ensures superb durability.
2. Easy to use with many possible mounting positions. Valve operates efficiently with minimum pressure loss.
Applications
Food & Beverage、Air Separation、Filling Operation、Ceramic Molding、Semi-conductor Cleaning、Automobile、Others
| Operating pressure | 0-16bar (0-232psi) |
| Control pressure | 3-8bar (43.5-116psi) |
| Control medium | Filtered compressed air or neutral gas |
| Body material | CF8M/CF8 |
| Seal material | EPDM/FPM |
| Applicable medium | FKM-Suitable for most fluid, except for steam. |
| EPDM-Suitable for steam and hot water, | |
| unsuitable for oils, greases, fuels etc. | |
| Medium temperature | -20℃ — +150℃ (FPM)， |
| -20℃ — +130℃ (EPDM) | |
| Ambient temperature | -20℃ — +80℃ |
| Control type | Single acting normally closed, |
| Single acting normally open, | |
| Double acting normally closed, | |
| Double acting without spring | |
| Connection type | Threaded connection (BSP、BSPT、NPT) |
| Leakage class | DIN EN 12266 Class A |
-
