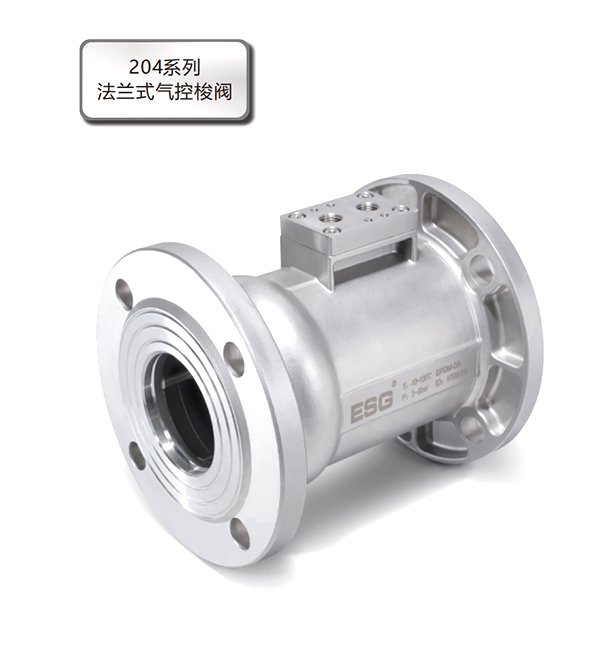

204 Series Flanged Shuttle Valve
| Operating pressure | Above seat 0-16bar (0-232psi) |
| Below seat 0-12bar (0-174psi) | |
| Control pressure | 3-5bar (43.5-72.5psi) |
| Control fluid | Filtered compressed air or neutral gas |
| Body material | CF8 |
| Seal material | EPDM/(FKM can be customized) |
| Applicable medium | EPDM-Suitable for steam and hot water, |
| unsuitable for oils, greases, fuels, etc. | |
| FPM-Suitable for most fluid, except for steam. | |
| Fluid temperature | -20℃ — +80℃ (EPDM) |
| Ambient temperature | -20℃ — +80℃ |
| Control type | Double acting without spring |
| Connection type | Flange |
| DIN2543/DIN2576/EN1092-1/HG20592 | |
| Leakage class | DIN EN 12266 Class A |
-
