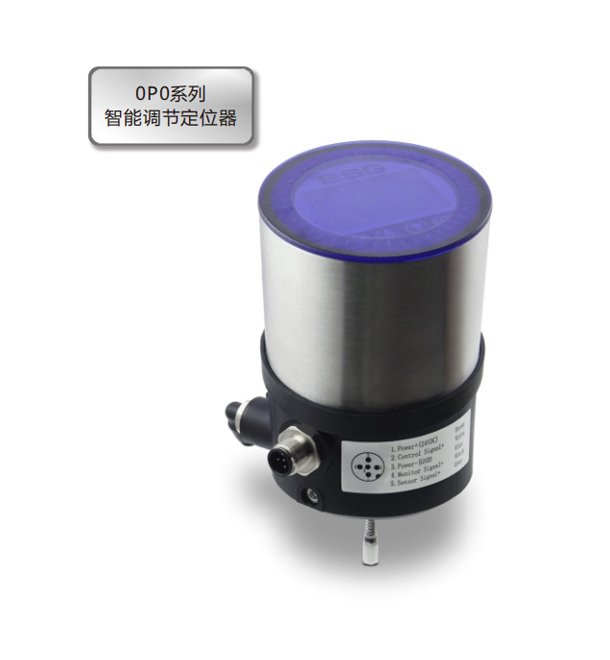

0P0/0P5 Series Intelligent Adjustment Positioner (Standard version)
Advantages
1. Compact size to save space.
2. Reliable performance and sensitive reaction.
3. Large LCD display makes it easy to operate.
4. Standard electrical interface allows convenient wiring.
5. High adjustment precision and strong anti-interference performance.
6. Spring-loaded feedback rod for easy installation.
7. Allows various types of connection interface.
Function Principle
Intelligent positioner is a microprocessor-based valve regulator. The valve's open/close state is controlled by external input signals. It is widely used in industrial fluids control systems in order to enable remote and automated control
| Stroke range | 5-13mm, 10-28mm |
| Voltage | 24V DC±10% |
| Power consumption | ＜4W |
| Input signal | 0/4-20mA, 0-5/10V |
| Feedback signal | Simulated signal (0/4-20mA, 0-5/10V) |
| Digital signal (high-level) | |
| Enclosure Material | PA6-GF15+PC+304 |
| Dimension | Φ79x112 |
| Control pressure | 3-7bar (43.5-102psi) |
| Temperature range | 0-60℃ |
| Protection level | IP65 |
| Explosion-proof | II 3G Ex ec IIC T4 Gc |
| Mounting interface | G1/4、M26x1.5 (can be customized) |
