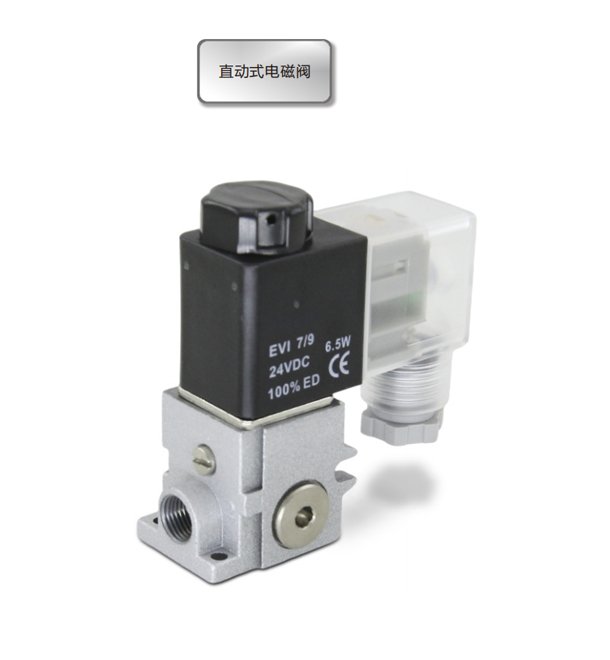

Direct - Acting Solenoid Valve
Advantages
1. With a brand-new processing technique, the roughness of the inner hole of the solenoid valve body has been improved.
2. It can be installed in multiple combinations, saving space.
3. The core material of the solenoid valve adopts soft magnetic stainless steel imported from Germany, which enhances the magnetic performance and reduces the coil power by 30%.
| Working Medium | Air filtered through a 40-micron filter screen |
| Actuation Mode | Direct-acting |
| Driving Voltage | AC 220V / DC 24V |
| Interface Pipe Diameter | G1/8 |
| Ambient Temperature | -10 — +60℃ |
| Gas Temperature | 5 — 60℃ |
| Outlet Diameter | 1.0mm |
| Lubrication | Not required |
| Operating Pressure | 0~0.8MPa |
| Maximum Pressure Resistance | 1.2MPa |
| Power Consumption | AC: 5.5 VA, DC: 4.8W |
| Protection Level | IP65 |
| Wiring Form | Outlet wire type or terminal type |
| Body Material | Aluminum alloy |
| Maximum Actuation Frequency | 10 times per second |
| Insulation | Class F |
| Voltage Range | ±10% |
| Minimum Excitation Time | 0.05S |
| Flow Orifice Diameter | Φ1mm |
