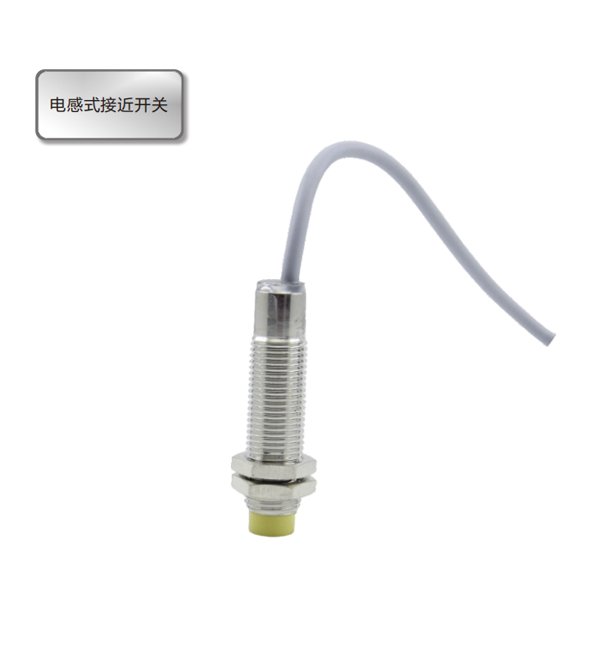

Inductive Proximity Switch
Advantages
1. Used in the fields of automatic control such as sensing ferromagnetic metals, counting, and positioning.
2. Brass - plated nickel, non - flush mounting.
3. Cylindrical shape with G1/4*57, convenient for installation.
4. Output options of NPN/PNP/normally open or normally closed functions are available according to customer requirements.
5. Standard 2 - meter PVC wire outlet.
6. Protection level IP67.
| Sensor Type | Inductive |
| Shape Type | Cylindrical |
| Sensing Surface Material | ABS - engineering plastic |
| Installation Method | Non - flush mounting |
| Outer Diameter Size | G1/4*57mm |
| Sensing object | Magnetic metal iron (sensing area |
| Output Type | NPN/PNP |
| Output Function | Normally open / normally closed |
| External Connection | 3.8mm, 2-meter PVC cable |
| Rated Voltage | 24VDC |
| Voltage Range | 10-30VDC |
| Switching Frequency | 800Hz |
| Operating Ambient Temperature | - 25℃ —+70℃ |
| Maximum Load Current | 200mA |
| Sensing Distance Error | <15%(Sr) |
| Short - circuit Protection | Available |
| Reverse - connection Protection | Available |
| Residual Voltage | Below 3.3V (when load current is |
| 100 mA and wire length is 2m) | |
| Consumption Current | <10mA |
| Sensing Distance | 3mm±10% |
