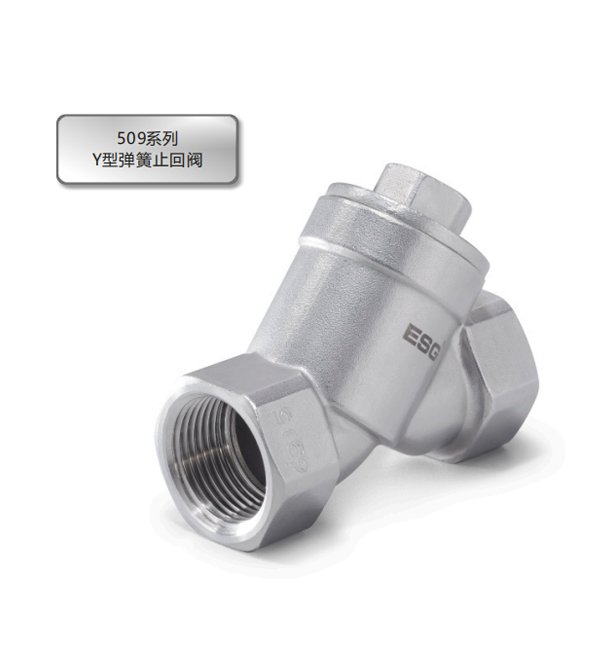

509 Series Y-Spring Check Valve

Function Principle

Medium enters valve body through inlet opening, pushes the valve  stem and valve core upward, and thereby opens the valve. When  the medium starts to flow back from the outlet, the spring force and  pressure applied by the medium itself push the valve stem and  valve core down, and thereby close the valve.
