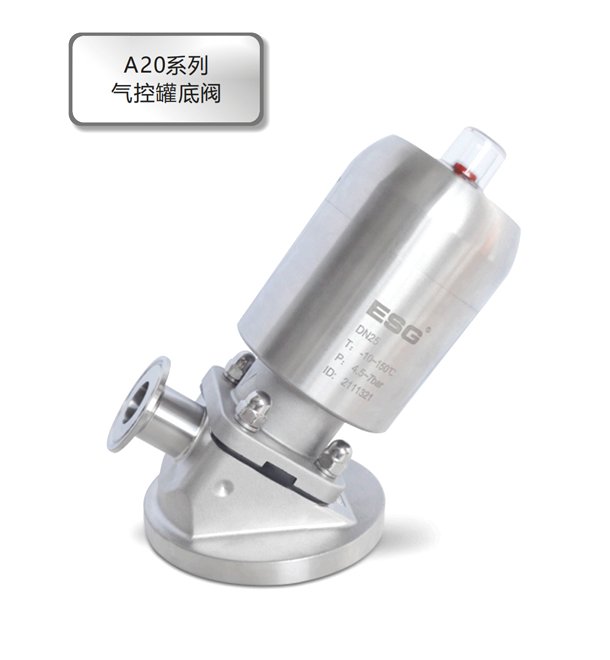

A20 Series Pneumatic Tank Bottom Diaphragm
Advantages
1. Compact structure to minimize installation space.
2. No dead angle, auto emptying and no turbulence phenomenon during the emptying process.
3. Applicable to CiP/SIP process to actualize online high temperature disinfection.
4. The surface finish of the inner surface of the valve body can reach Ra0.4.
5. Manual and pneumatic actuator is optional.
| Material | Investment casting CF3M |
| Forged F316L (Customized special materials) | |
| (Pneumatic) Actuator+Valve seat CF8; | |
| (Manual) Valve seat CF8 | |
| Internal Surface | Ra≤0.4μm mechanically polished |
| Diaphragm Material | EPDM+PTFE (Double-layer diaphragm) |
| EPDM (Single-layer diaphragm) | |
| Operating Pressure | 0-10bar (0-145psi) |
| Fluid Temperature | -10℃ — +130℃ (sterilization at 150℃ for 60mins) |
| Control Pressure(pneumatic) | 4.5-7bar (65-102psi) |
-
