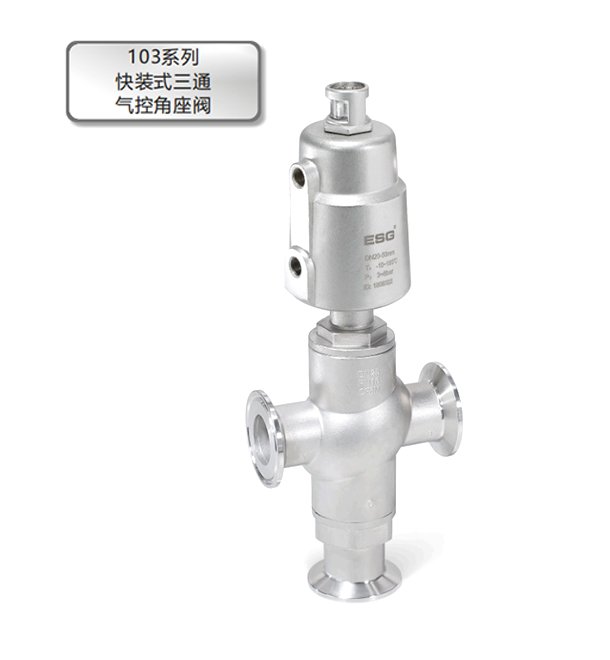

103 Series Threaded Pneumatic Three-way Angle Seat Valve
Function Principle
When the valve is in idle state, C port is closed due to spring force. When the actuator piston is compressed, C port is opened and B port is closed. When double acting, the valve opens and closes by compressed air.
| Operating pressure | 0-16bar (0-232psi) |
| Control pressure | 3-8bar (43.5-116psi) |
| Control fluid | Filtered compressed air or neutral gas |
| Body material | CF8M/CF3M and other special materials |
| Actuator material | CF8 |
| Seal material | PTFE |
| Fluid temperature | -10℃ — +180℃ |
| Ambient temperature | -10℃ — +80℃ |
| Control type | Single acting normally closed, |
| Double acting normally closed, | |
| Double acting without spring | |
| Connection type | Threaded connection, Tri-clamp |
| Applicable medium | Water, Steam, Oil, Neutral gas or Liquid, |
| Organic solvent, Acid and lye | |
| Leakage class | DIN EN 12266 Class A |
-
