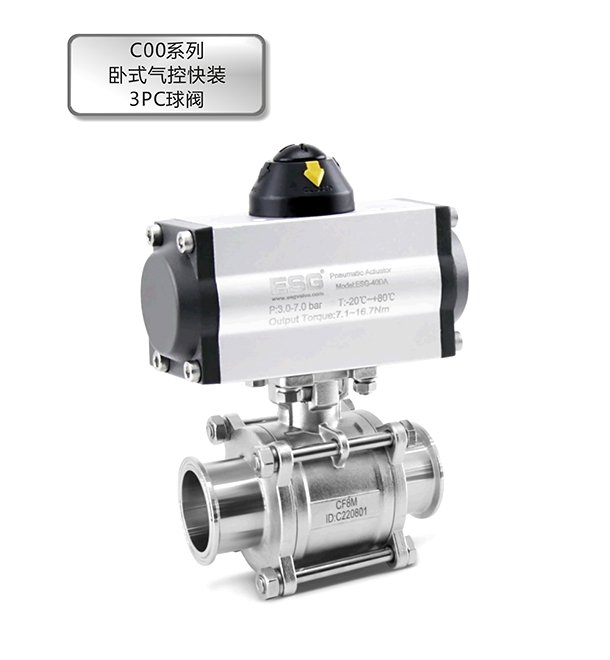

C00 Series Horizontal Pneumatic Three-Piece Ball Valve
| Size | 1/2"-6" |
| Body structrue | Straight and all-inclusive ball seat design |
| Working pressure | 10bar (0-145psi) |
| Control pressure | 5-7bar (72-102psi) |
| Body material | CF8/CF8M/CF3M |
| Sealing material | PTFE |
| Control type | Single acting/Double acting |
| Connection type | Tri-clamp 3A, welded 3A |
| Internal surface | CNC machining Ra 0.6μm |
| Temperature | -20℃~+150℃ |
| Applications | Widely used in food, beverages, brewery,pharmaceuticals industries etc. |
-
