A12 Seires Pneumatic U-Shape Valve
Overview

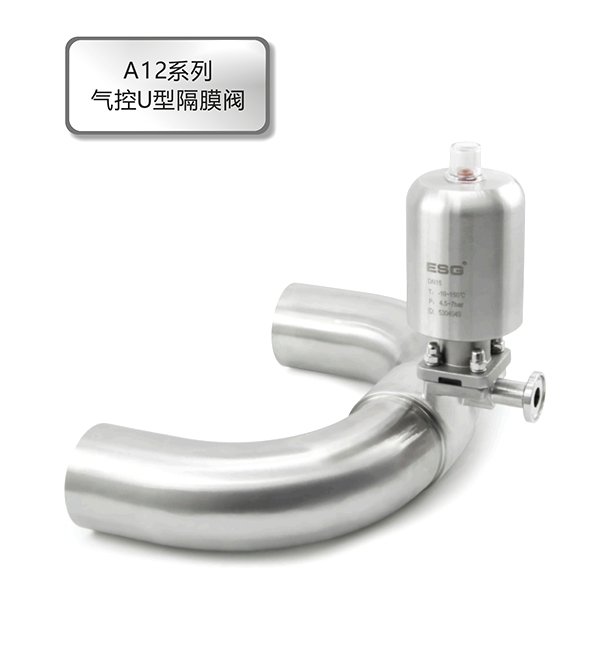

We have developed U-Shape valves based on T-Shape valves to meet different working condition requirement,and customization can be provided according to customer needs.
Advantages
1. No dead ends on the product surface,easy to clean.
2. Optimized bend curvature design,low flow resistance
3. Suitable for CIP/SIP processes,enabling high-temprature sterilization
4. The surface finish of the valve body can reach Ra0.4
5. Both main valve and sampling port can be provided with welded /tri-clamp connection type.
6. Both the main valve and sampling port can be provided with manual and pheumatic ctuators.
7. Sampling position can be customized according to requirements
| Material | Investment casting CF3M, |
| Forged F316L (Customized special materials) | |
| (Pneumatic) Actuator+Valve seat CF8; | |
| (Manual) Valve seat CF8 | |
| Internal Surface | Ra≤0.4μm mechanically polished |
| Diaphragm Material | EPDM+PTFE (Double-layer diaphragm) |
| EPDM (Single-layer diaphragm) | |
| Operating Pressure | 0-10bar (0-145psi) |
| Fluid Temperature | -10℃ — +130℃ (sterilization at 150℃ for 60mins) |
| Control Pressure(pneumatic) | 4.5-7bar (65-102psi) |
-
