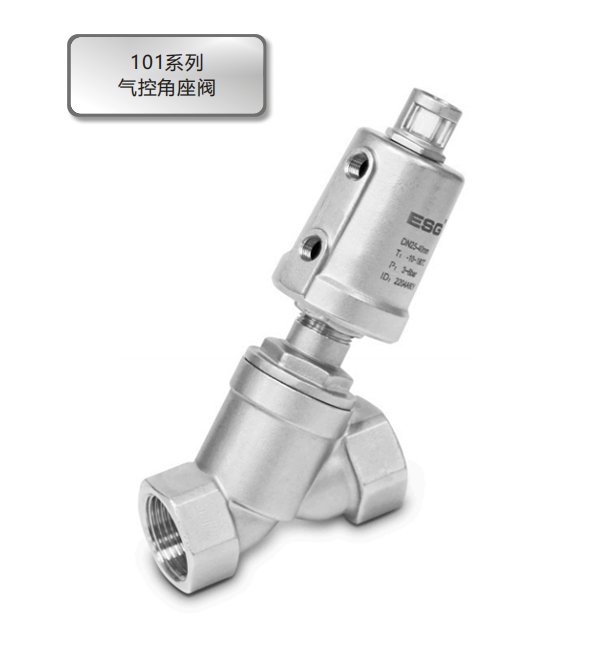

101 Series Pneumatic Angle Seat Valve
Advantages
1. Lightweight appearance, compact structure, and excellent performance.
2. Y-shaped structure design of the valve body features high flow rate, low flow resistance, and rapid action response.
3. Stainless steel actuator, better performance for harsh environments
| Operating pressure | 0-10bar (0-145psi) |
| Control pressure | 3-8bar (43.5-116psi) |
| Control fluid | Filtered compressed air or neutral gas |
| Cylinder material | CF8 |
| Body material | CF8/CF8M/CF3M and other special materials |
| Seal material | PTFE |
| Applicable medium | Water, Oil, Air, Liquid, Organic solvent,Acid and lye |
| Medium temperature | -10℃ — +180℃ |
| Ambient temperature | -10℃ — +80℃ |
| Control type | Single acting normally closed, |
| Double acting normally closed, | |
| Double acting without spring | |
| Connection type | Threaded, Welded, Tri-clamp, Flanged |
| Leakage class | DIN EN 12266 Class A |
-
