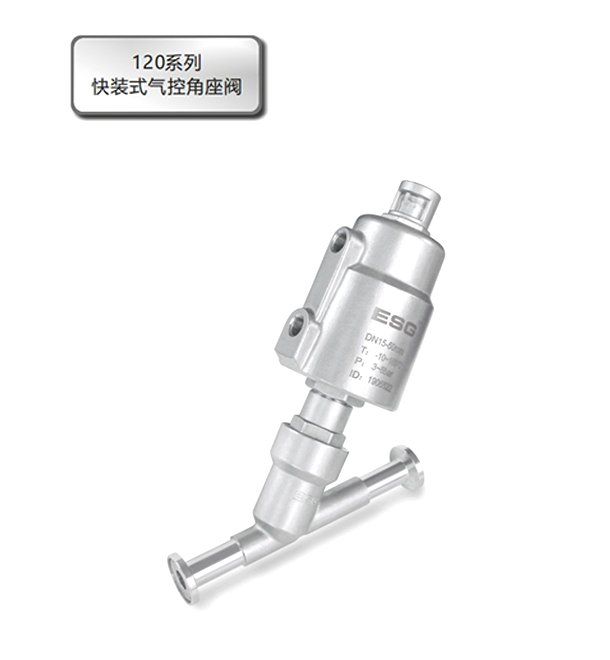

120 Series Threaded Pneumatic Angle Seat Valve
Advantages
1. New sealing structure can reduce residues and be easy to clean.
2. High flow rate, low flow resistance, and no water hammer.
3. Y-shaped valve body design, increasing flow by 30%.
4. Ultra long service life.
5. Valve rod auto-correction and self-lubricating.
6. Stainless steel actuator, better performance in harsh environment and can rotate 360°.
| Operating pressure | 0-16bar (0-232psi) |
| Control pressure | 3-8bar (43.5-116psi) |
| Control fluid | Filtered compressed air or neutral gas |
| Body material | CF8/CF8M/CF3M and other special materials |
| Seal material | PTFE |
| Actuator material | CF8 (28mm-90mm Actuator)、 |
| AL (125mm Actuator) | |
| Actuator size | 28mm,40mm, 50mm, 63mm, 90mm, 125mm |
| Applicable fluid | Water, Alcohol, Oil, Fuel, Steam, Neutral gas |
| or Liquid, Organic solvent, Acid and lye | |
| Fluid viscosity | Max 600mm 2 /s |
| Fluid temperature | -10℃ — +180℃, +25℃ — +220℃ |
| Ambient temperature | -10℃ — +80℃ |
| Control type | Single acting normally closed, |
| Single acting normally open, | |
| Double acting normally closed, | |
| Double acting without spring | |
| Connection type | Threaded (BSP, BSPT, NPT), |
| Welded, Tri-clamp, Flanged | |
| Leakage class | EN 12266 Class A |
-
