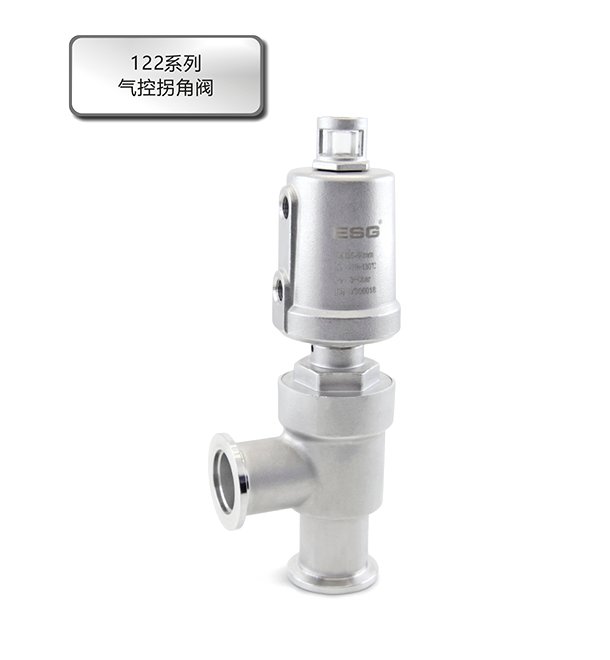

122 Series Pneumatic Angle Stop Valve
Advantages
1. Lightweight appearance, compact structure, and excellent performance.
2. Stainless steel actuator, better performance for harsh environments and can rotate 360°.
3. Unique sealing structure design, applicable to dusty conditions, and ultra long service life.
| Operating pressure | 0-10bar (0-145psi) |
| Control pressure | 3-8bar (43.5-116psi) |
| Control fluid | Filtered compressed air or neutral gas |
| Actuator material | CF8 (40mm-90mm Actuator)、 |
| AL (125mm Actuator) | |
| Body material | CF8/CF8M/CF3M and other special materials |
| Seal material | EPDM/FPM |
| Applicable fluid | Vacuum and Inert gas, Dusty gas, Water, Oil, |
| Steam, Liquid, Organic solvent, Acidand lye | |
| Fluid temperature | -10℃ — +150℃ |
| Ambient temperature | -10℃ — +80℃ |
| Control type | Single acting normally closed, |
| Double acting normally closed, | |
| Double acting without spring | |
| Connection type | KF |
| Valve seat leakage Pa·m3 /s (He) | below 1.3×10 -10 |
| External leakage Pa·m3 /s (He) | below 1.3×10 -11 |
-
