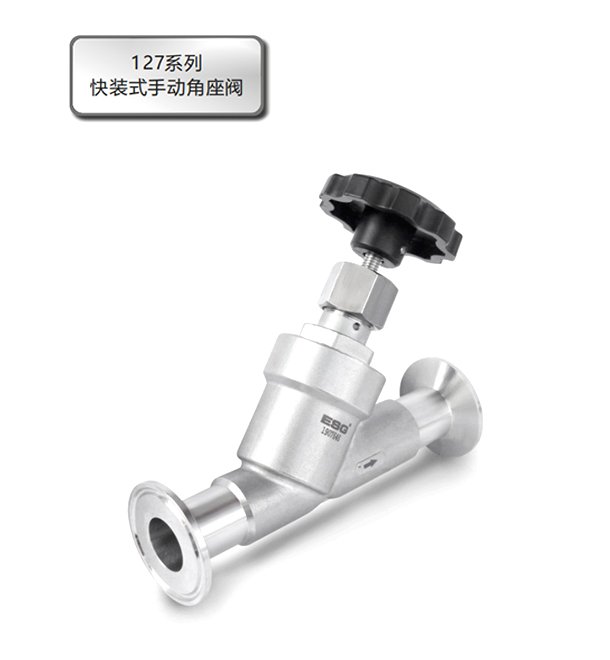

127 Series Threaded Manual Angle Seat Valve
Advantages
1. New body seal design can reduce residue and easy to clean.
2. Large flux, low resistance, no water-hammer.
3. Y type raises flux by 30% and make smooth flow.
4. The adjustable seat is optional to realize the adjustable flow by hand .
| Operating pressure | 0-16bar (0-232psi) |
| Body material | CF8/CF8M/CF3M and other special materials |
| Seal material | PTFE |
| Applicable fluid | Water, Alcohol, Oil, Fuel, Steam, Neutral gas |
| or Liquid, Organic solvent, Acid and lye | |
| Fluid temperature | -10℃ — +180℃ |
| +25℃ — +220℃ | |
| Ambient temperature | -10℃ — +80℃ |
| Fluid viscosity | Max 600mm 2 /s |
| Connection type | Threaded, Welded ASME-BPE, |
| Tri-clamp ASME-BPE, Flange | |
| Leakage class | EN 12266 Class A |
-
