Advantages

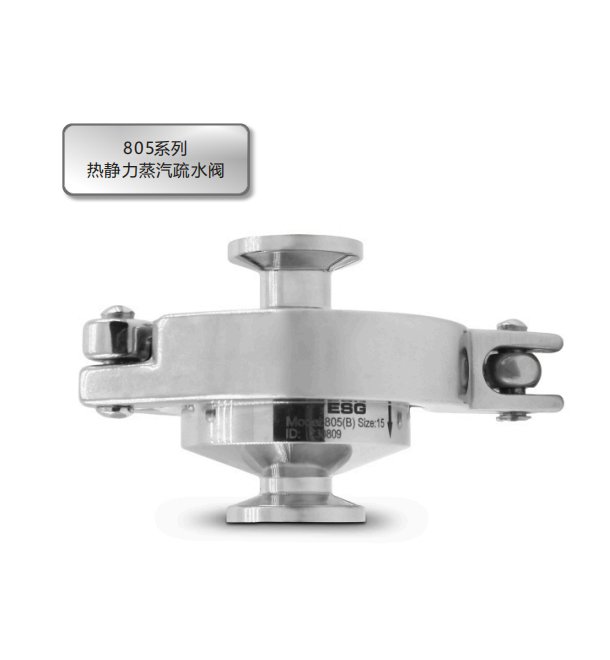

The stainless steel steam trap is widely applicable in various fields, including steam main pipes, heat tracing equipment dryers, and heat exchange equipment.
1. Free flow of cold water and seamless design in the true sense, maximum inhibition of bacterial aggregation.
2. The feature of 'fault normally open' minimizes the possibility of shutdown under critical operating conditions.
3. The valve nozzle design with a large opening can quickly discharge a large amount of air, ensuring fast start, preventing blockage, and ensuring continuous operation.
4. Tight structure, easy installation and maintenance.
5. Internal polishing to prevent bacterial growth.
| Nominal pressure | 1.0MPa |
| Max allowable pressure PMA | 1.0MPa |
| Max allowable temperature TMA | 200℃ |
| Max working pressure PMO | 0.6MPa |
| Max operating temperature TMO | 165℃ |
| Four types of bellows | A-Discharge condensate below saturation temperature of 3℃ B-Discharge condensate below saturation temperature of 5℃ C-Discharge condensate below saturation temperature of 15℃ D-Discharge condensate below saturation temperature of 25℃ |
Attention: To avoid abnormal operation, accidents, or personal injury, please do not use this product beyond the specification range.
If the technical standards or regulations of a country or region have special provisions for the above specifications, the product should be used in accordance with local regulations.
-
