Advantages

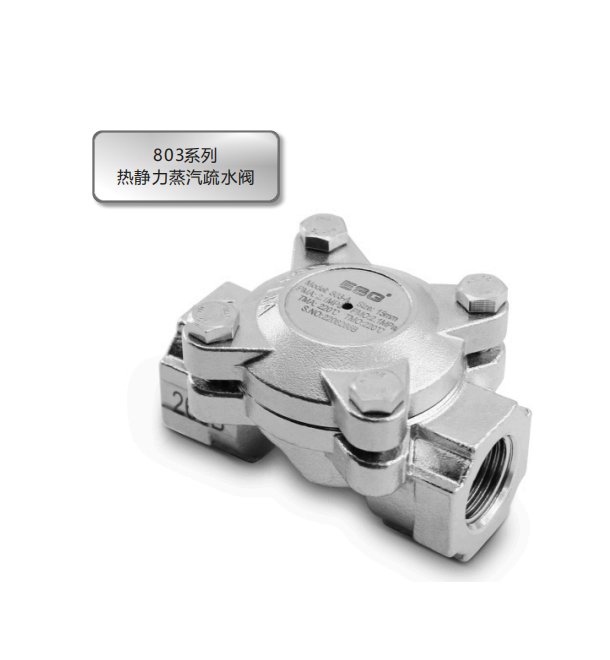

The stainless steel thermostatic steam trap is widely applicable in various fields, including steam main pipes, heat tracing equipment dryers, and heat exchange equipment.
1. Featuring a 'fault normally open' feature to ensure no condensate accumulation in the steam space;
2. The structure is sturdy and lightweight, capable of withstanding superheated steam and water hammer;
3. Automatic regulation of fixed undercooling throughout the entire pressure range;
4. Excellent air emission performance;
5. Can be installed horizontally or vertically;
6. The filter screen with a large flow area and a compact structure has a large drainage capacity;
7. Easy to maintain and clean.
| Nominal pressure | 2.5MPa |
| Connection | thread |
| Max working pressure PMO | 2.1MPa |
| Max working pressure difference △PMX | 2.1MPa |
| Max operating temperature TMO | 220℃ |
| Four types of bellows | A-Discharge condensate below saturation temperature of 3℃. B-Discharge condensate below saturation temperature of 5℃. C-Discharge condensate below saturation temperature of 15℃. D-Discharge condensate below saturation temperature of 25℃. |
Attention: To avoid abnormal operation, accidents, or personal injury, please do not use this product beyond the specification range.
If the technical standards or regulations of a country or region have special provisions for the above specifications, the product should be used in accordance with local regulations.
-
