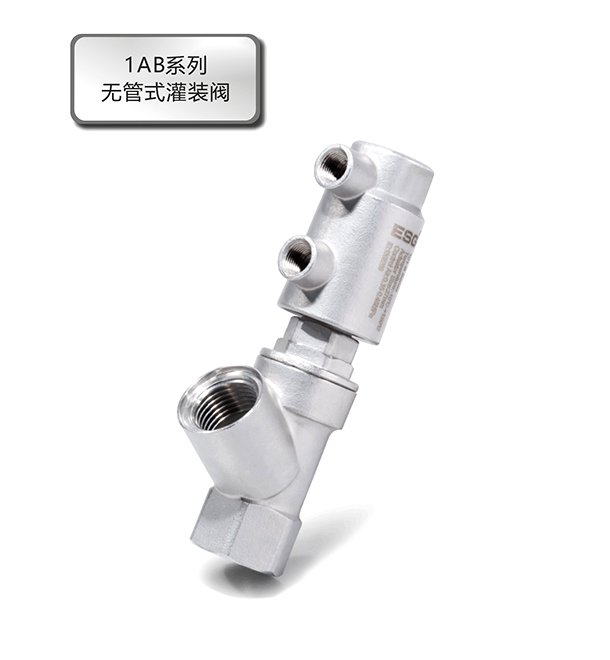

1AB Series Pipe-less Filling Valve
Advantages
1. The filling valves is widely used in filling machinery, suitable for viscous, pasty and even foamy fluids with accurate and stable filling.
2. 1AA series with 27mm actuator and 1AS series, the valve core made a flexiable seat, it can be the self-adjustable with good sealing performance.
| Control type | Double acting normally closed, |
| Double acting without spring | |
| Operating pressure | 0-7bar (0-102psi) |
| Control medium | Filtered compressed air or neutral gas |
| Control pressure | 3-4.5bar (44-65psi) |
| Body material | CF8/CF8M /CF3M and other special materials |
| Seal material | PTFE |
| Medium temperature | -10℃ — +120℃ |
| Ambient temperature | -10℃ — +80℃ |
| Connection type | Threaded connection (BSP, BSPT, NPT) |
-
348KB PDF
