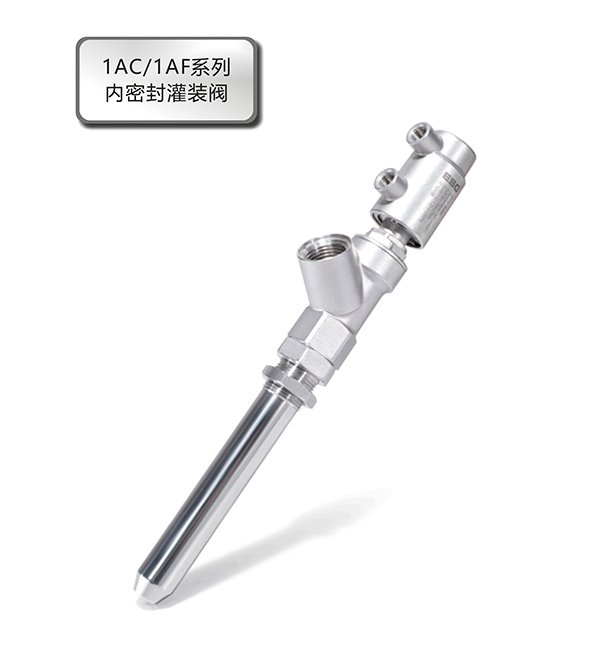

1AC/1AF Series Filling Valve with Internal Sealing
Advantages
1. It is widely used in filling machinery, especially for applications with viscous, pasty and even foamy fluids.
2. Fast, accurate and stable filling.
3. Delicate and compact, easy to arrange pipeline layout.
4. Special nozzle structure and sealing design ensure no dripping leakage.
5. Bottom chamfer structure of the filling nozzle self-locates and enables submerged filling.
6. Internal suction pipe effectively recovers dripping liquid.
| Control type | Double acting normally closed, |
| Double acting without spring | |
| Operating pressure | 0-7bar (0-102psi) |
| Control pressure | 3-4.5bar (44-65psi) |
| Body material | CF8M/CF3M and other special materials |
| Seal material | PTFE |
| Medium temperature | -10℃ — +120℃ |
| Ambient temperature | -10℃ — +80℃ |
-
348KB PDF
