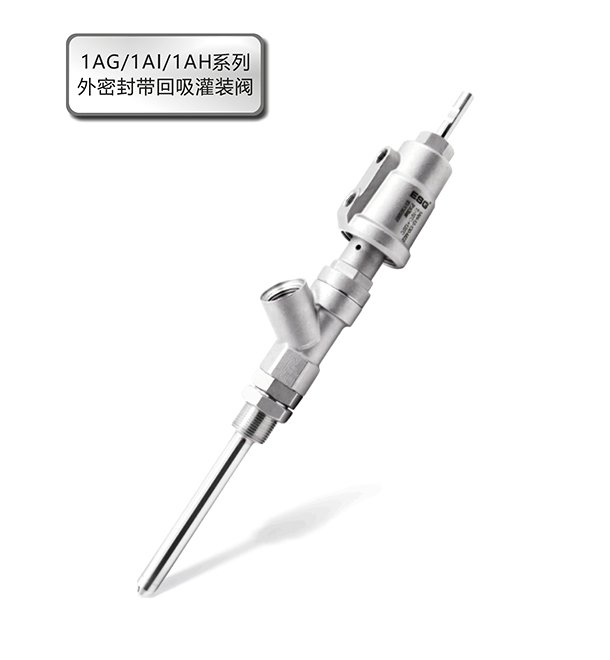

1AG/1AI/1AH Series Filling Valve with External Sealing and Suction
Advantages
1. Superior performance in easy foaming fluids filling.
2. Delicate and compact structure easy for pipeline layout.
3. Fast and stable filling.
4. Special suction design ensure no dripping leakage.
5. Special tip seal structure enables convenient maintenance and replacements.
| Control type | Double acting normally closed, |
| Double acting without spring | |
| Operating pressure | 0-7bar (0-102psi) |
| Control pressure | 3-4.5bar (44-65psi) |
| Body material | CF8M/CF3M and other special materials |
| Seal material | PTFE |
| Medium temperature | -10℃ — +120℃ |
| Ambient temperature | -10℃ — +80℃ |
-
367KB PDF
