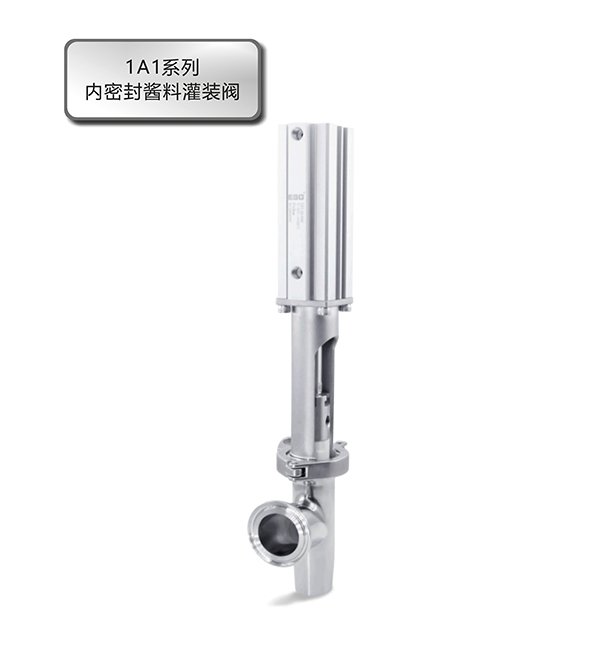

1A1 Series Sauce Filling Valve with Internal Sealing
Advantages
1. Fast, accurate and stable filling.
2. The internal structure adopts plunger design, resulting in easy cleaning and minimal residue.
3. The filling body and the connection are connected by tri-clamp, so that they can be installed, uninstalled, and adjusted easily.
4. Long valve stroke enables large-capacity filling.
5. Accessories, such as proximity switch, can be installed on the actuator to enable feedback of valve open /close state.
| Control type | Double acting without spring |
| Operating pressure | 0-7bar (0-102psi) |
| Control pressure | 4-7bar (58-102psi) |
| Control medium | CF8M/CF3M and other special materials |
| Seal material | Food-grade PUR |
| Medium temperature | -10℃ — +110℃ |
| Ambient temperature | -10℃ — +60℃ |
-
233KB PDF
